* 3GPP Release 15

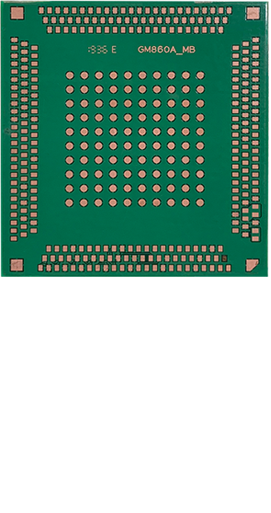

* LGA封装

* 尺寸：46 × 49 × 3mm

* 重量：About 10.0g

* SA&NSA (Option 3X,3A and Option 2)

* High-power UE

* Transmit Power:

--5G NR: 26 ±2.7dBm (Power Class 2)

--LTE: 23 ±2.7dBm (Power Class 3)

--3G: 23 ±2.7dBm (Power Class 3)

* Antenna:

--4 × 4 MIMO

* Power Supply:

--3.4V to 4.2V(5G)/4.8Vto 5.2V(V2X)

--3.8V(5G)/5V(V2X) Typical

* Operation temperature: -40°C to +85°C

-- Extreme Operating temperature: -40°C to +95°C

* Storage temperature: -40°C to +85°C

* Humidity: 5%~ 95%

* C1AX

1.5G NR: n1,n3,n5,n8,n41,n77,n78,n79

2.PC5: B47

3.LTE FDD: B1,B3,B5,B7,B8

4.LTE TDD: B38,B39,B40,B41

5.WCDMA: B1,B5,B8

6.GSM: B5,B8

* 5G NR

-- 下行速率 2.12Gbps / 上行速率 900Mbps

* 4G LTE

-- LTE Cat.19: 下行速率 1.6Gbps / 上行速率 200Mbps

* PCIE 3.0 2-Lanes

* USB 3.1 Gen2 & USB2.0

* SIM x2 interface (1.8/3.0V)

* Audio I2S or PCM

* UART

* SPI

* I2C

* ADC

* LED

* RGMII

* SDIO

* RFFE MIPI for antenna tune

* Antenna:

-- 4x for 4x4 MIMO can be extended to 8 antenna

-- 1 × for GNSS can be extended to 2 V2X 2x2 MIMO

* GPIO

* Reset & Power-on

* WAKE-IN & WAKE-OUT

* Support embedded TCP & UDP protocols

* Support protocols PAP and CHAP used for PPP connection

* USB Selective Suspend & Remote wakeup

*RAS /ECM/RNDIS

*Control Via AT Commands according to 3GPP TS27.005, 27.007 and GOSUNCN extended AT commands

* Drivers

--Windows XP, Vista, 7 , 8, 10

--Linux

* Diag-log Tool

* Firmware Update Tool
