Overview

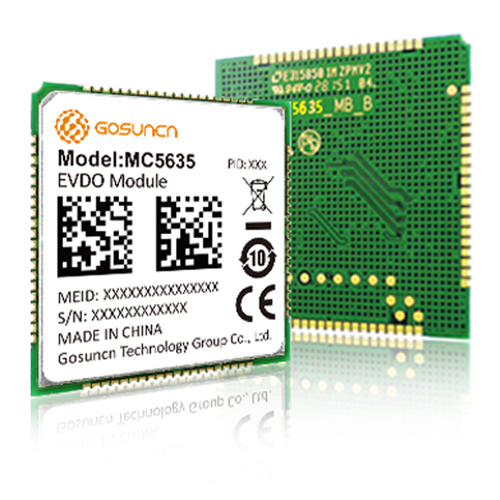

MC5635 is one of the 450M EVDO modules in LCC castellation packaging with ultra low power consumption and extended temperature range.

The tiny profile in cost optimized LCC form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from the module’s small size, low power consumption and mechanical intensity. A rich set of internet protocols (TCP/UDP protocols), industry-standard interfaces (UART) and abundant functions extend the applicability of the module to a wide range of M2M applications such as metering, tracking systems, security solutions, routers, wireless POS, mobile computing devices, PDAs, tablet PC and so on.

MC5635 also allows the integration of automotive and other applications requiring assured extended operating temperature range and mechanical ruggedness within the ever-shrinking space inside electronic bays in trucks, automobiles, and other mobile platforms, and it is a power saving kind for users.

Highlights
  • LCC Form Factor
  • CMUX
  • Rx diversity
  • EVDO
  • FOTA
  • Embedded TCP/IP
  • EVDO: DL 14.7Mbps/UL 5.4Mbps
  • 8-wires UART
  • USB 2.0
  • Pin-to-Pin with vlink series
  • -40℃ ~ 85℃
  • Auto suspend & remote wakeup

Certifications

  • CE
