Overview

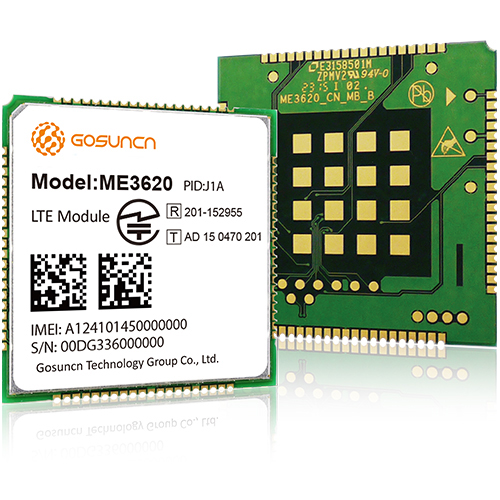

ME3620 module supports LTE FDD/WCDMA in a LCC form factor. It is compatible with 3G/4G modules ME3630/ME3610/MW3650/MC8635, which allows customers to take maximum advantage of their hardware and software investments and have very short time-to-market.
ME3620 features data-rates of 100Mbps (DL) and 50Mbps (UL) which can provide users with reliable 4G connections.
ME3620 is ideal for a wide range of industrial applications, such as smart metering, vehicle infotainment system, in-car Wi-Fi, security and surveillance, tele-medicine, POS, industrial router, etc.
Highlights
* Support LTE FDD/WCDMA, the downlink speed is up to 100Mbps
* Support GPS&A-GPS
* LCC 30*30 Form factor, compatible with vlink family products
* Control Via AT Commands according to 3GPP TS27.005, 27.007 and GosuncnWelink extended AT commands
* Drivers for WIN XP/7/8, Android, Linux, WinCE OS
* Support embedded TCP/UDP protocols, PAP and CHAP protocols used for PPP connection

Certifications

  • RoHS
  • JATE
  • TELEC
Parameters
Network FDD-LTE/UMTS



Frequency band



 J1A: LTE FDD B1, B3, B5, B8, B9, B18, B19, B21 WCDMA B1, B5, B6, B8, B19
Dimensions 30×30×2.3 mm
Temperature -40℃ to +85℃
Voltage Voltage Range：3.4V~4.2V
Consumption About 3mA standby current
Interface LCC 80Pin，Mini PCIE/M.2 (Optional)
USB interface USB 2.0
Driver Windows XP/7/8
Android 2.3/4.X/5.X
Linux 2.6.10 and later
WinCE 5.0/6.0
Data rate （FDD）DL: 100Mbps/UL: 50Mbps
Function Data/SMS/GPS (Optional)
Commands Standard AT commands/ZTE exclusive commands
Certifications RoHS/JATE/TELEC
Operator: Docomo KDDI
Highlights Support GPS&A-GPS
Support a rich set of internet protocols (PAP and CHAP used for PPP connections) and abundant functions (GPS/A-GPS, DTMF, TTS, Remote wakeup, USSD, SMS)
